By Enerbe Technical Team | Updated: August 31, 2026

24V 100Ah LiFePO4 Battery: Complete Buying Guide for Installers

A 24V 100Ah LiFePO4 battery is a 25.6V nominal, 2,560Wh lithium iron phosphate battery designed for deep-cycle applications — trolling motors, marine house banks, RVs, solar storage, golf carts, and industrial backup. It delivers 3,000+ cycles at 100% depth of discharge, weighs 19 kg, supports 100A continuous discharge, and charges at 29.2V.

For system integrators, marine dealers, RV manufacturers, and golf course fleet managers, the 24v 100ah lifepo4 battery is the workhorse capacity — small enough for single-battery installations, powerful enough for most medium-duty applications, and cost-effective at volume. This guide covers everything you need to specify, source, and deploy 24V 100Ah lithium batteries for commercial projects.

What Is a 24V 100Ah LiFePO4 Battery?

A 24V 100Ah LiFePO4 battery is built from 8 lithium iron phosphate cells connected in series (8S), producing a nominal voltage of 25.6V (8 × 3.2V per cell). The "100Ah" rating means it can deliver 100 amps for one hour, or 10 amps for 10 hours, at the nominal 25.6V — totaling 2,560 watt-hours (Wh) of stored energy.

Unlike lead-acid batteries, which only deliver 50% of their rated capacity before damaging the plates, a LiFePO4 battery provides 80-100% usable capacity. This means a 100Ah LiFePO4 battery delivers roughly the same usable energy as a 200Ah lead-acid bank — at one-third the weight and with zero maintenance.

The "24V" label is the industry-standard nominal classification. The actual operating voltage ranges from 20V (low voltage disconnect) to 29.2V (full charge), with 25.6V as the nominal average. This is compatible with all 24V trolling motors, inverters, and marine electronics designed for 24V lead-acid systems.

Full Specifications: Enerbe 24V 100Ah LiFePO4 Battery

For volume pricing, custom configurations, or a full technical datasheet, contact the Enerbe engineering team.

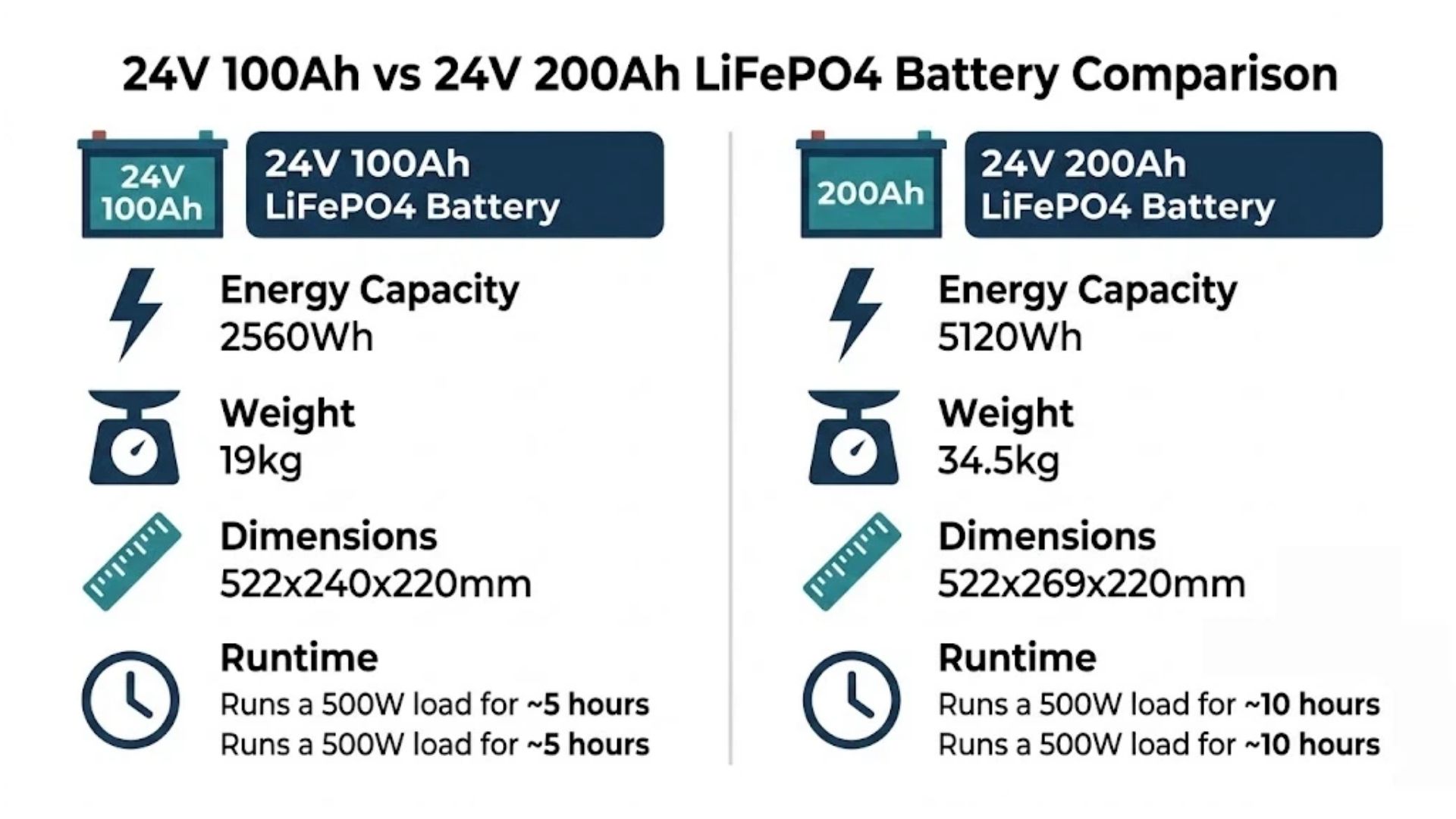

100Ah vs 200Ah: Which Size Do You Need?

The most common question from installers is whether to spec a 24v 100ah battery or step up to a 24v 200ah lifepo4 battery. The decision comes down to energy needs, physical space, and budget.

Rule of thumb for installers: Calculate your customer's daily energy consumption in watt-hours. If they need under 2,000Wh per day, a single 24V 100Ah battery (2,560Wh) is sufficient with 80% depth of discharge. If they need 2,000-4,000Wh per day, use a 24V 200Ah battery or wire two 100Ah units in parallel. For projects above 4,000Wh/day, consider a 48V system or multiple 24V 200Ah batteries in parallel.

Both the 24V 100Ah and 24V 200Ah models share the same charging voltage (29.2V), BMS protection features, and LiFePO4 cycle life, making them interchangeable within the same system architecture.

Runtime: How Long Will a 24V 100Ah Battery Last?

A 24V 100Ah LiFePO4 battery stores 2,560Wh of energy. To estimate runtime, divide the usable energy (2,560Wh × 0.85 for inverter/efficiency losses = ~2,176Wh) by the load power in watts.

These are estimates — actual runtime varies with load efficiency, wire gauge, temperature, and depth of discharge. For commercial installations, always size the battery bank for 20-30% reserve capacity above the calculated daily load to account for cloudy days, unexpected usage, and gradual capacity degradation over time.

Common Applications for B2B Buyers

The 24V 100Ah LiFePO4 battery is versatile across multiple commercial segments. Here's how B2B buyers deploy it:

Trolling Motors & Fishing Boats: A 24 volt lithium trolling motor battery is the most popular upgrade for 55lb-80lb thrust trolling motors. The 19 kg weight is 60% lighter than equivalent lead-acid, reducing boat draft and improving fuel efficiency. Consistent voltage delivery means full thrust throughout the discharge cycle, unlike lead-acid which sags and slows the motor. For tournament fishing, wire two units in parallel for 200Ah. See our dedicated guide on 24V lithium trolling motor batteries.

Marine House Banks: For sailboats, cruisers, and workboats, a 24 volt lithium marine battery powers house loads — lighting, navigation electronics, refrigeration, and water pumps. The zero-maintenance design eliminates battery watering in hard-to-reach engine rooms, and the corrosion-resistant construction handles the marine environment. For larger vessels, parallel multiple 100Ah units or step up to 200Ah.

RV & Campervan Electrical Systems: A 24V 100Ah battery works well in RVs with 24V inverter systems, particularly in European and Australian markets where 24V is standard. It powers fridges, LED lighting, water pumps, and entertainment systems for 8-12 hours off-grid. Pair with 400W+ of solar panels for extended off-grid capability.

Solar Energy Storage: In off-grid and grid-tied solar systems, a 24V 100Ah battery stores excess PV generation for evening and nighttime use. It pairs with a 24V MPPT charge controller (set to 29.2V bulk / 27.0V float) and a 24V inverter. For residential solar, multiple units can be paralleled for larger capacity; for commercial installations, consider a 48V rack-mounted system.

Golf Carts & Low-Speed Vehicles: A 24V 100Ah battery (or four in series for 48V systems) replaces lead-acid in golf carts, providing extended range, faster charging, and zero maintenance. For golf course fleet operators, the 10x longer cycle life dramatically reduces replacement costs and downtime.

Industrial & Telecom Backup: For UPS systems, telecom base stations, and industrial backup power, the 24V 100Ah LiFePO4 battery provides reliable standby power with long calendar life and low self-discharge (1-3% per month). The integrated BMS ensures safe operation in unmanned installations.

What to Look for When Sourcing a 24V 100Ah Lithium Battery

For B2B buyers sourcing at volume, not all 24V 100Ah lithium batteries are equal. Verify these critical specs before committing to a supplier:

1. True LiFePO4 Chemistry: Ensure the battery uses genuine lithium iron phosphate (LiFePO4) cells, not NMC, LCO, or recycled cells. LiFePO4 offers superior thermal stability, 2-3x longer cycle life, and is cobalt-free for ESG compliance. Ask for cell grade certification — A-grade cells only.

2. BMS Quality & Features: The Battery Management System is as important as the cells. Look for: over-voltage protection, under-voltage protection, over-current protection, short-circuit protection, over-temperature protection, low-temperature charge cutoff, and cell balancing. For fleet and commercial applications, prefer smart BMS with Bluetooth monitoring, RS485/CAN communication, and remote state-of-health tracking.

3. Cycle Life & Warranty: Require minimum 3,000 cycles at 100% DoD (5,000+ at 80% DoD), backed by manufacturer cycle-life test data. Look for a minimum 5-year warranty — reputable manufacturers offer 5-10 year warranties on LiFePO4 batteries.

4. Discharge Current Rating: Ensure the continuous discharge rating matches your application. A 24V 100Ah battery should deliver at least 100A continuous (2,560W at 25.6V) — sufficient for most trolling motors, inverters up to 2,000W, and marine loads. For high-draw applications, verify the peak discharge rating (200A for 10 seconds is standard).

5. Certifications & Compliance: Verify CE, UN38.3, RoHS, and MSDS for international shipping and regulatory compliance. For North American installations, UL 1973 certification is increasingly required by inspectors and insurance companies. For Australian installations, verify CEC listing eligibility.

6. Manufacturer vs Trader: Source directly from ISO9001-certified manufacturers for better pricing, consistent quality control, supply chain transparency, and OEM/ODM customization capabilities. Traders may offer lower upfront prices but cannot guarantee cell quality, batch consistency, or long-term support. Enerbe operates its own manufacturing facilities and welcomes factory audits.

Charging & Maintenance

A 24V 100Ah LiFePO4 battery charges at 29.2 ± 0.2V (29.0V-29.4V) using a constant-current / constant-voltage (CC/CV) profile. The recommended charge current is 5A-20A, with a maximum of 50A. At 20A, a fully depleted battery charges in approximately 5-6 hours; at 50A (maximum), it charges in 2-2.5 hours.

Always use a charger with a dedicated LiFePO4/lithium mode — never a lead-acid charger. Lead-acid chargers use desulfation mode (high-voltage pulses above 30V) and equalization mode (deliberate overcharging) that can trigger the BMS overcharge protection or damage the cells. Many modern chargers (NOCO, CTEK, Victron, Renogy) offer a selectable lithium/LiFePO4 mode.

For solar charging, use an MPPT charge controller with a user-configurable LiFePO4 profile — set bulk charge to 29.0V-29.4V and float to 27.0V-27.6V. A 400W solar array is the recommended minimum for a 24V 100Ah battery, producing 12-15A at 24V in full sun and adding 70-90Ah per day.

Maintenance is essentially zero. Unlike lead-acid batteries, LiFePO4 requires no watering, no equalization charging, and no periodic desulfation. Simply keep the battery clean, ensure terminals are tight, and avoid charging below 0°C (32°F) — the BMS includes low-temperature charge cutoff to prevent lithium plating. For long-term storage, charge to 50-70% state of charge and store in a cool, dry environment (15-25°C optimal).

For a complete guide to charging 24V LiFePO4 batteries, see our 24V lithium battery charging voltage guide.

Frequently Asked Questions

Q: What is a 24V 100Ah LiFePO4 battery?
A: A 24V 100Ah LiFePO4 battery is a rechargeable lithium iron phosphate battery with a nominal voltage of 25.6V (8 cells in series × 3.2V) and a rated capacity of 100Ah, delivering 2,560 watt-hours (Wh) of usable energy. It offers 3,000+ cycles at 100% DoD, is cobalt-free, thermally stable, and requires zero maintenance. The Enerbe 24V 100Ah model weighs 19 kg, supports 100A continuous discharge, and charges at 29.2V.

Q: How long will a 24V 100Ah battery last?
A: A 24V 100Ah LiFePO4 battery stores 2,560Wh. Runtime depends on load: a 50W trolling motor on low speed runs ~40-45 hours; a 100W marine electronics setup runs ~20-22 hours; a 500W inverter runs ~4-4.5 hours; a 1000W load runs ~2-2.5 hours. In terms of cycle life, it delivers 3,000+ full cycles at 100% DoD (5,000+ at 80% DoD) — 8-15 years of reliable service for daily cycling, compared to 2-3 years for lead-acid.

Q: 24V 100Ah vs 200Ah LiFePO4 battery: which do I need?
A: Choose based on energy needs. A 24V 100Ah stores 2,560Wh, weighs 19 kg. A 24V 200Ah stores 5,120Wh (double), weighs 34.5 kg. For trolling motors, small RVs, and backup power, 100Ah is sufficient. For marine house banks, off-grid solar, and all-day runtime, choose 200Ah — or wire two 100Ah batteries in parallel. Both share the same 29.2V charging voltage and LiFePO4 cycle life.

Q: What should I look for when buying a 24V 100Ah lithium battery?
A: Verify: (1) True LiFePO4 chemistry with A-grade cells; (2) Quality BMS with over/under-voltage, over-current, short-circuit, and temperature protection; (3) 3,000+ cycle life at 100% DoD with 5+ year warranty; (4) 100A+ continuous discharge rating; (5) CE, UN38.3, RoHS, MSDS certifications (UL 1973 for North America); (6) Source directly from ISO9001-certified manufacturers, not traders, for better pricing and quality control.

Q: Can I use a 24V 100Ah LiFePO4 battery for a trolling motor?
A: Yes — a 24V 100Ah LiFePO4 battery is excellent for 24V trolling motors (55lb-80lb thrust). It delivers 2,560Wh, powering a 50W motor on low speed for 40-45 hours or medium speed for 13-15 hours. Compared to lead-acid, it weighs 60% less, lasts 10x longer, requires zero maintenance, and maintains consistent voltage (full thrust even as the battery drains). For all-day tournaments, wire two 100Ah batteries in parallel for 200Ah. Use a LiFePO4-compatible charger set to 29.2V.

Summary

A 24V 100Ah LiFePO4 battery is the most versatile deep-cycle capacity for commercial applications — 2,560Wh of usable energy, 19 kg, 3,000+ cycles, zero maintenance, and compatibility with all 24V trolling motors, marine systems, RVs, solar installations, and industrial backup power. For B2B buyers, it offers the lowest total cost of ownership compared to lead-acid, with 10x longer cycle life and 60% less weight.

When sourcing at volume, prioritize true LiFePO4 chemistry, quality BMS with smart monitoring, 3,000+ cycle life with test data, full certifications (CE, UN38.3, RoHS, UL 1973), and direct manufacturer sourcing. Enerbe manufactures 24V 100Ah and 24V 200Ah LiFePO4 batteries with all of the above, offers OEM/ODM customization, and provides wholesale pricing for volume buyers.

For a broader overview of 24V LiFePO4 batteries, see our 24V LiFePO4 Battery Complete Guide. For the higher-capacity option, see our 24V 200Ah LiFePO4 Battery Guide. For trolling motor-specific applications, see our 24V Lithium Trolling Motor Battery Guide.
