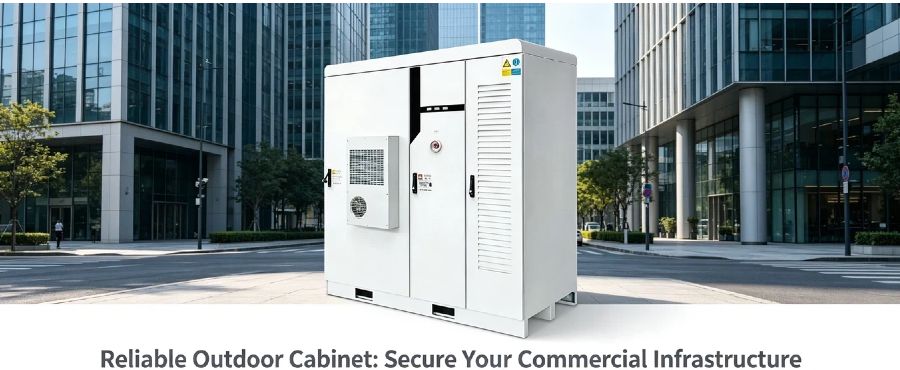

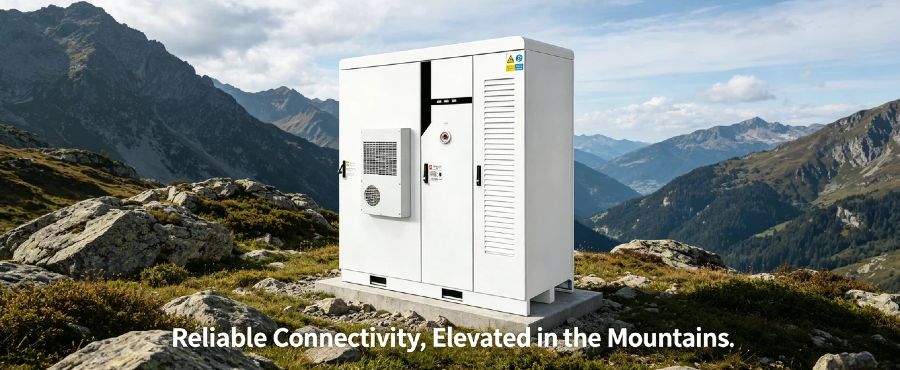

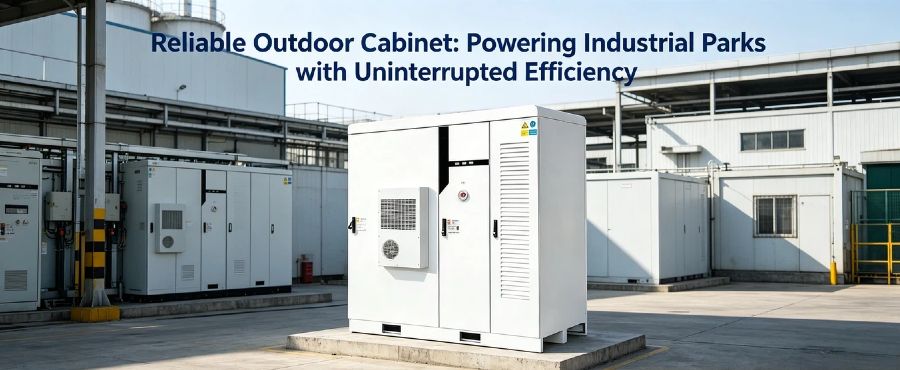

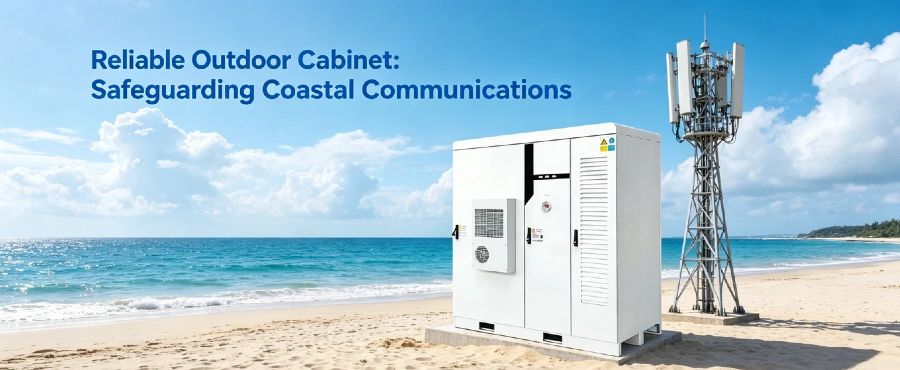

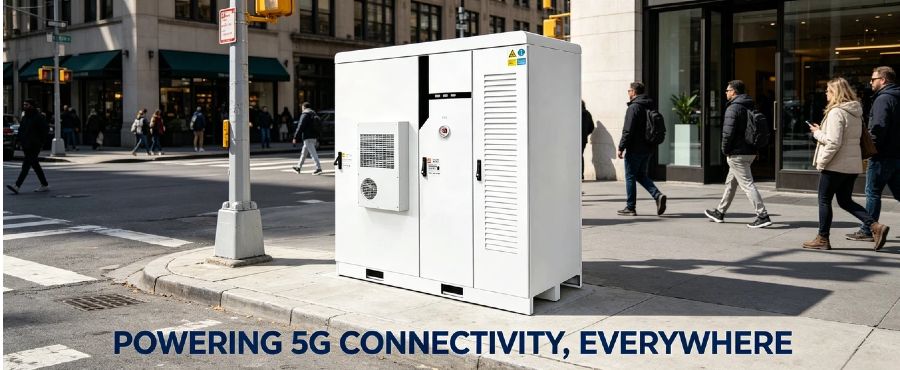

896V 100Ah Containerized Energy Storage System
EN-896100CB
The 896V 100Ah Containerized Energy Storage System is a high-voltage, industrial-grade power solution delivering 89.6kWh of energy in a robust, weather-resistant enclosure. Designed for large-scale applications, this system features an IP54 protection rating, advanced aerosol fire suppression, and comprehensive communication interfaces (CAN/RS485) for seamless integration. With a cycle life of 3000 cycles and a heavy-duty design, it ensures safe, reliable, and efficient energy storage for commercial and utility projects.
Product Specifications
Nominal Voltage: 896V
Rated Capacity: 100Ah
Total Energy: 89.6kWh
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Cycle Life: 3000 Cycles (80% DOD, 80% EOL)
Protection Rating: IP54
Fire Suppression: Integrated smoke, temperature, and aerosol fire extinguishing devices
Communication: 1-way non-isolated CAN, 1-way isolated CAN, 2-way isolated RS485
Dimensions (LxWxH): 1100 x 800 x 1600 mm (43.3 x 31.49 x 62.99 in)
Weight: 1030 kg (2270.8 lbs)
Product Specifications
Nominal Voltage: 896V
Rated Capacity: 100Ah
Total Energy: 89.6kWh
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Cycle Life: 3000 Cycles (80% DOD, 80% EOL)
Protection Rating: IP54
Fire Suppression: Integrated smoke, temperature, and aerosol fire extinguishing devices
Communication: 1-way non-isolated CAN, 1-way isolated CAN, 2-way isolated RS485
Dimensions (LxWxH): 1100 x 800 x 1600 mm (43.3 x 31.49 x 62.99 in)
Weight: 1030 kg (2270.8 lbs)
Quantity:
896V 100Ah Containerized Energy Storage System (89.6KWh)
High-Voltage C&I ESS with Integrated Fire Suppression
ThisContainerized Energy Storage System (ESS) is engineered for maximum safety and performance in demanding environments. The unit comes pre-assembled in a compact cabinet format, significantly reducing on-site installation time and complexity.
Key features include:
- High-Voltage Architecture: Operating at a nominal 896V, it is optimized for commercial and industrial (C&I) energy storage applications, reducing current flow and transmission losses.
- Advanced Safety: The system is equipped with a multi-layer safety design, including an IP54-rated enclosure that protects against dust and water ingress. Crucially, it features an integrated fire suppression system with smoke and temperature detection, alongside aerosol extinguishing devices to mitigate risks instantly.
- Smart Management: The Battery Management System (BMS) supports CAN and RS485 communication, allowing for real-time monitoring and integration with broader Energy Management Systems (EMS).
Core Advantages
- Long Service Life: With a cycle life of 3000 cycles at 80% Depth of Discharge (DOD), the system offers a superior Total Cost of Ownership (TCO) compared to traditional lead-acid or lower-grade lithium solutions.
- Robust Thermal Performance: Designed to operate efficiently in a wide temperature range, with charging capabilities from 0°C to 45°C and discharging from -20°C to 60°C.
- Plug-and-Play Installation: The all-in-one cabinet design integrates the battery modules, BMS, and safety systems into a single footprint, simplifying logistics and deployment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Nominal Voltage | 896V |
| Rated Capacity | 100Ah (0.5C, 25°C) |
| Total Energy | 89.6 KWh |
| Cycle Life | 3000 Cycles (80% DOD, 80% EOL) |
| Charge Voltage | 1008V |
| Maximum Charge Current | 50A |
| Continuous Discharge Current | 100A |
| Communication | 1-way Non-isolated CAN, 1-way Isolated CAN, 2-way Isolated RS485 (9600bps) |
| Charge Temperature | 0°C to 45°C |
| Discharge Temperature | -20°C to 60°C |
| Storage Temperature | -10°C to 50°C |
| Dimensions (LxWxH) | 1100 x 800 x 1600 mm (43.3 x 31.49 x 62.99 in) |
| Weight | 1030 kg (2270.8 lbs) |
| Protection Rating | IP54 |
| Fire Fighting | Smoke, temperature, and aerosol fire extinguishing devices |
Perfect For
- Commercial & Industrial (C&I) Energy Storage: Ideal for factories and commercial buildings looking to reduce peak demand charges.
- Solar PV Integration: Perfect for coupling with large-scale solar arrays to store excess generation for use during peak hours or at night.
- Microgrids: Provides stable backup power and frequency regulation for remote or off-grid communities.
- Grid Support: Suitable for utility-scale peak shaving and load shifting applications.
Customization Services
We understand that every project has unique requirements. Our OEM/ODM services allow for customization in:
- Voltage & Capacity: Tailoring the series/parallel configuration to meet specific energy (kWh) and power (kW) needs.
- Enclosure: Modifying cabinet dimensions or outdoor ratings (e.g., IP65) for harsh environments.
- Communication Protocols: Adapting BMS software to communicate with specific inverter brands or third-party SCADA systems.
