896V 100Ah Containerized Energy Storage System
Product Specifications
Nominal Voltage: 896V
Rated Capacity: 100Ah
Total Energy: 89.6kWh
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Cycle Life: 3000 Cycles (at 80% DOD, 80% EOL)
Protection Rating: IP54 (Dust and Water Resistant)
Communication Interfaces: 1x Non-isolated CAN, 1x Isolated CAN, 2x Isolated RS485 (9600 bps)
Fire Safety: Integrated smoke, temperature, and aerosol fire extinguishing devices
Dimensions (LxWxH): 1100 x 800 x 1600 mm (43.3 x 31.49 x 62.99 in)
Weight: 1030 kg (2270.8 lb)

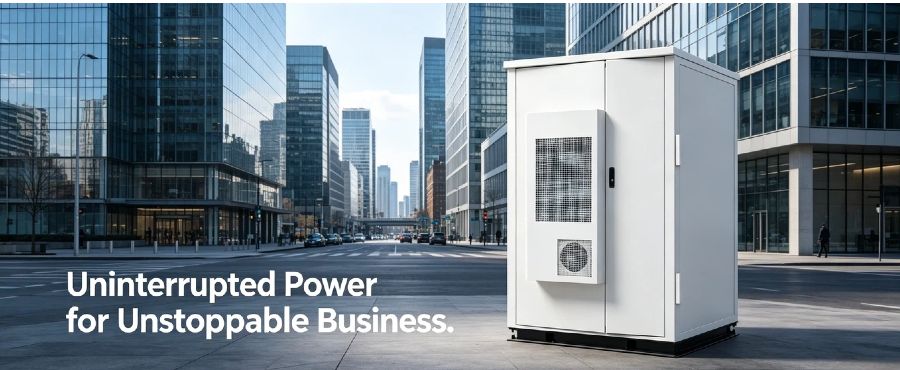

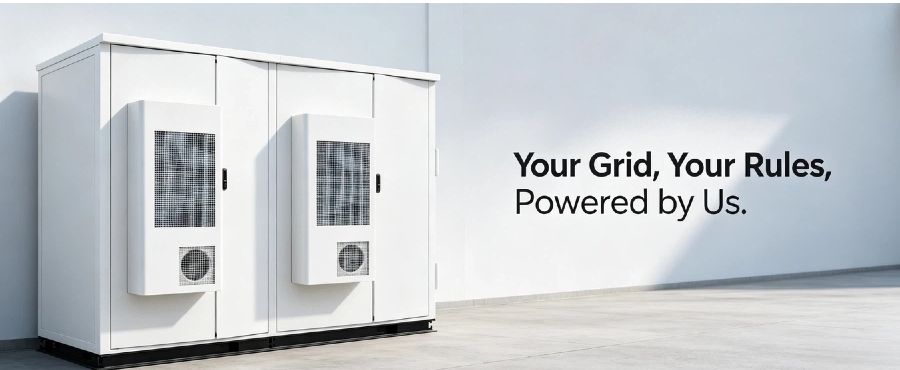

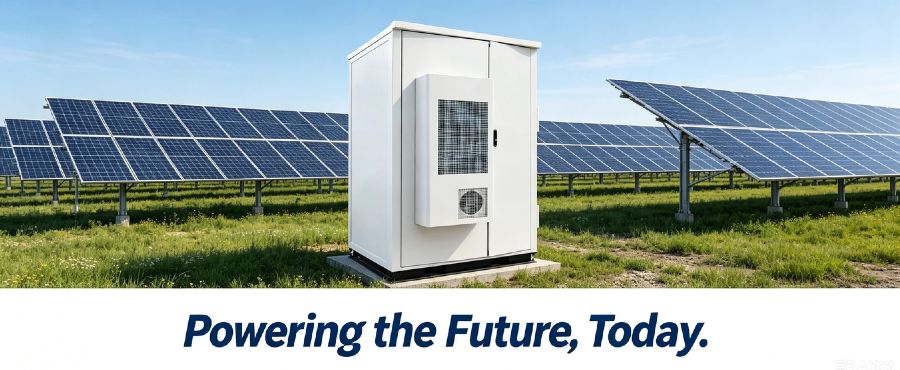

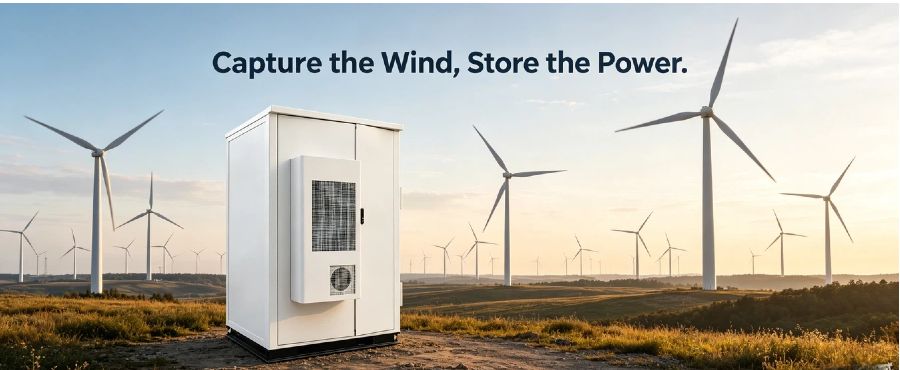

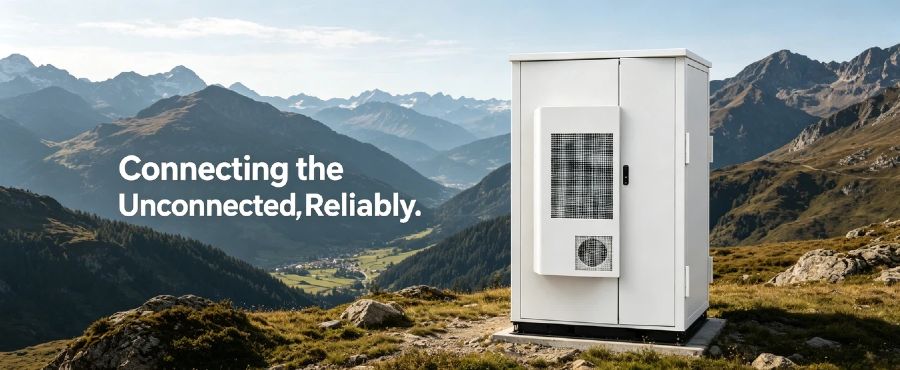

896V 100Ah Containerized Energy Storage System (89.6KWh)
High-Voltage C&I ESS with Integrated Fire Suppression
Thiscontainerized energy storage system is engineered for high-performance, long-duration power backup and grid support. The unit houses a high-voltage 896V battery pack with a 100Ah capacity, providing 89.6kWh of usable energy. Its rugged, outdoor-rated cabinet features an IP54 enclosure to withstand harsh environments, while integrated fire suppression systems (smoke detection, temperature monitoring, and aerosol extinguishing) ensure maximum safety.
The system supports multiple communication protocols (CAN, RS485) for real-time monitoring and control, making it ideal for smart grid integration and remote management. With a 3000-cycle lifespan and a 1-year material warranty, it offers a reliable, long-term investment for critical power infrastructure.
Core Advantages
- High Voltage & High Energy Density:896V systemdelivers89.6kWh in a compact footprint, ideal for space-constrained installations.
- Industrial-Grade Safety: Equipped with aerosol fire extinguishing devices, temperature sensors, and smoke detectors for proactive hazard prevention.
- Robust Environmental Protection:IP54-rated enclosure ensures reliable operation in dusty, humid, or outdoor conditions.
- Advanced Communication & Monitoring:MultipleCAN and RS485 interfaces enable seamless integration with BMS, SCADA, and energy management systems.
- Long Service Life:3000 cycles at 80% DOD ensures low total cost of ownership over the system’s lifetime.
- Heavy-Duty Construction:Weighing1030kg, the unit is built for stability and durability in demanding industrial settings.
Technical Specifications
| Parameter | Specification |
|---|---|
| Nominal Voltage | 896V |
| Rated Capacity | 100Ah (0.5C, 25°C) |
| Total Energy | 89.6 KWh |
| Cycle Life | 3000 Cycles (80% DOD, 80% EOL) |
| Charge Voltage | 1008V |
| Maximum Charge Current | 50A |
| Continuous Discharge Current | 100A |
| Communication | 1-way Non-isolated CAN, 1-way Isolated CAN, 2-way Isolated RS485 (9600Kb) |
| Charge Temperature | 0°C to 45°C |
| Discharge Temperature | -20°C to 60°C |
| Storage Temperature | -10°C to 50°C |
| Relative Humidity | 45%RH ～ 85%RH |
| Dimensions (LxWxH) | 1100 x 800 x 1600 mm (43.3 x 31.49 x 62.99 in) |
| Weight | 1030 kg (2270.8 lb) |
| Protection Rating | IP54 |
| Fire Fighting | Smoke, temperature, and aerosol fire extinguishing devices |
Perfect For
- Commercial & Industrial (C&I) Energy Storage
- Grid-Scale Battery Storage Systems
- Renewable Energy Integration (Solar/Wind Farms)
- Microgrid and Off-Grid Power Solutions
- Data Center Backup Power
- Utility-Scale Peak Shaving and Load Leveling
Customization Services
We offer comprehensive OEM/ODM customization to meet your specific project requirements. Customization options include:
- Voltage & Capacity: Tailor the system to your exact kWhandvoltageneeds.
- Enclosure Design: Modify dimensions, color, or add custom branding.
- Communication Protocols: Integrate additional interfaces (e.g., Modbus, Ethernet) or customize software.
- Safety Systems: Upgrade fire suppression or add environmental sensors.
- Mounting & Installation: Adapt for floor-standing, wall-mount, or containerized deployment.
- Certifications: Assist with regional compliance (e.g., UL, IEC, CE) for global markets.
