Introduction: Why Commercial Charging Is Different

Charging a single 12V LiFePO4 battery in an RV is straightforward—connect the right charger and wait. But charging a commercial LiFePO4 battery system—a 48V rack with 8 parallel modules, a 200kWh commercial ESS, a data center UPS bank, or a solar + storage installation—requires careful system design, proper inverter/PCS configuration, multi-module current sharing, and compliance with safety codes. Get any of these wrong, and you risk reduced battery life, uneven module aging, BMS faults, or even safety hazards.

This guide covers commercial and industrial LiFePO4 charging best practices for system integrators, project developers, data center operators, telecom engineers, and solar installers. It assumes you already understand basic LiFePO4 charging parameters (CC/CV, voltage, current, temperature). If you need a refresher on the fundamentals, start with our complete LiFePO4 charging guide.

Commercial LiFePO4 Charging Architecture Overview

Commercial LiFePO4 charging systems typically use one of three architectures, depending on system size and application:

Regardless of architecture, all commercial systems share the same core charging principles: correct voltage (3.65V/cell), controlled current (0.2C–0.5C standard), temperature monitoring, BMS communication, and cell balancing during the CV stage. The differences are in scale, coordination, and integration complexity.

Multi-Module Parallel Charging: Best Practices

Most commercial systems use multiple battery modules connected in parallel (same voltage, increased capacity). For example, a 48V rack with 8 × 100Ah modules = 48V 800Ah = 40.96 kWh. Parallel charging is more complex than charging a single module—if not done correctly, modules charge unevenly, age at different rates, and can trigger BMS faults.

Rule 1: Match All Modules Before Parallel Connection

• Same manufacturer, model, and capacity: Never parallel different brands or capacities. Different BMS units have different protection thresholds and charge curves.

• Similar age and cycle count: A brand-new module paralleled with a 3-year-old module will have different internal resistance, causing uneven current sharing. If mixing ages is unavoidable, match them as closely as possible and monitor closely.

• Pre-charge to matching voltage: Before connecting modules in parallel, charge or discharge each module to within ±0.5V of each other. Large voltage differences cause high inrush current that can damage BMS, weld contacts, or blow fuses.

• Same firmware version: If modules have user-updatable BMS firmware, ensure all are on the same version. Different firmware can have different protection logic.

Rule 2: Use Equal-Length Busbars and Per-Module Fusing

• Equal cable/busbar length: Each module should connect to the common positive and negative busbars with cables of equal length and gauge. Unequal resistance causes some modules to charge/discharge more than others. For high-current systems, use copper busbars rather than cables.

• Per-module fuse: Install a fuse or circuit breaker on the positive output of each module, rated at the module's maximum continuous discharge current. This prevents a single module failure (internal short) from causing a cascade failure across all parallel modules. Use MRBF or MIDI fuses rated for DC voltage.

• Common busbar sizing: The main positive and negative busbars must be sized for the total system current (sum of all modules). For a 48V 800Ah system at 0.5C charge = 400A, busbars must be rated for 400A+ continuous.

Rule 3: Master/Slave BMS Communication

• Master BMS coordinates charging: In a multi-module system, one BMS acts as the master and communicates with the inverter/PCS. The master reports the system-level SOC, voltage, current, and temperature, and sends charge/discharge limits to the inverter. Slave modules report their status to the master.

• Communication topology: Modules are typically daisy-chained via CAN bus or RS485. The master is usually the first module in the chain, or a dedicated BMS controller (BMU—Battery Management Unit) in the battery cabinet.

• Charge current limiting: The master BMS calculates the total allowable charge current based on the weakest module (lowest temperature, highest cell voltage, lowest SOC). If one module is cold or has a high cell, the master reduces the total charge current to protect that module.

• Module-level monitoring: The system should allow monitoring of each module's individual voltage, current, temperature, and cell voltages. This enables early detection of a failing or underperforming module before it causes a system-level fault.

Rule 4: Charging Sequence for Parallel Systems

1. Verify all modules are within ±0.5V before connecting in parallel

2. Connect all modules to the busbars (with per-module fuses installed)

3. Connect the BMS communication cables (CAN/RS485 daisy chain)

4. Power on the master BMS / BMU and verify it detects all slave modules

5. Connect the inverter/PCS and verify BMS communication (system SOC, voltage, current readings)

6. Start charging at a reduced rate (0.1C–0.2C) for the first 10–15 minutes, monitoring module voltages to ensure even charging

7. If all modules charge evenly (voltage spread < 0.2V), increase to the normal charge rate (0.2C–0.5C)

8. During CV stage, monitor cell balancing across all modules. The system may take longer to balance when modules have different histories.

Inverter / PCS Charging Setup & Communication

The inverter or PCS (Power Conversion System) is the heart of a commercial charging system. It converts AC grid power to DC for charging, and DC battery power to AC for discharging. Proper setup is critical—incorrect charge voltage or current settings are the #1 cause of premature battery failure in commercial installations.

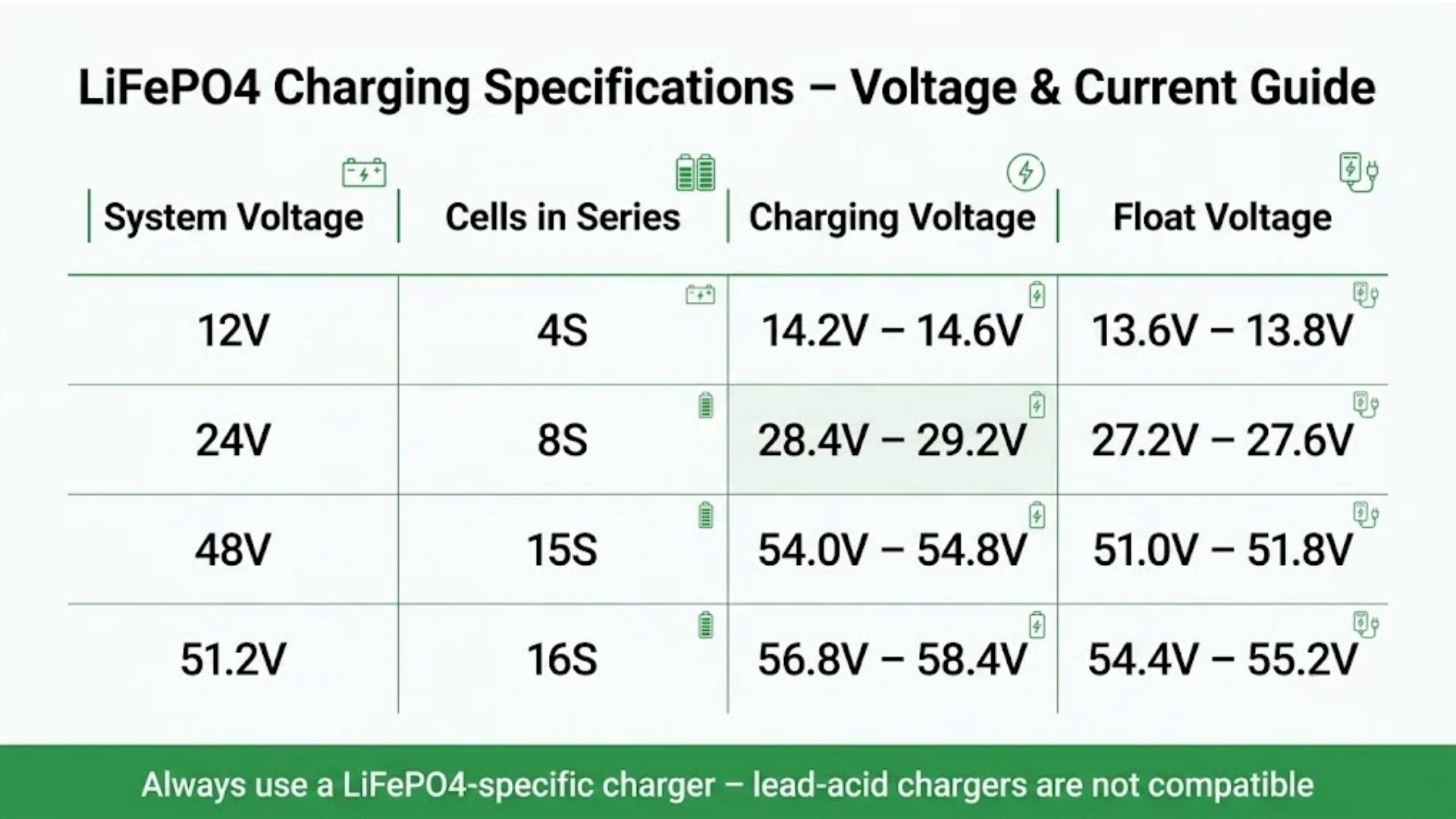

Essential Inverter/PCS Charging Parameters

BMS Communication Protocol Setup

For commercial systems, the inverter/PCS must communicate with the BMS to receive real-time battery data (SOC, voltage, current, temperature, fault status) and charge/discharge limits. Without communication, the inverter uses fixed voltage/current settings and cannot adapt to battery conditions—this is a common cause of overcharging or undercharging.

• CAN bus: Most common for hybrid inverters (Deye, Growatt, Sol-Ark, Victron, GoodWe) and PCS systems. The BMS uses a specific protocol (e.g., PYLONTECH CAN, DEYE CAN, SOLARAXE, SMA CAN). Verify your inverter supports the battery's CAN protocol—some inverters require a specific cable or firmware version.

• RS485 / Modbus RTU: Common for industrial PCS, telecom systems, and monitoring systems. Uses Modbus RTU protocol over RS485. Requires correct baud rate, parity, stop bits, and slave address configuration.

• TCP/IP / Ethernet: Used in large PCS systems and BMS controllers (BMU). Enables remote monitoring, firmware updates, and integration with SCADA systems.

• Verification after setup: After configuring communication, verify the inverter displays: correct battery SOC (matches BMS app reading), correct battery voltage (within 0.5V of multimeter reading), charge current limit (not exceeding BMS limit), and fault/warning status (no active faults). If the inverter shows "no battery" or "communication error", check cable wiring, protocol setting, baud rate, and terminating resistors.

Common Inverter Setup Mistakes

• Battery type set to "lead-acid" or "AGM": This applies lead-acid charge voltages (too high) and float mode (unnecessary), causing overcharging and accelerated degradation. Always set to "LiFePO4" or "LFP" or "User" with manual voltage settings.

• Charge voltage set too high: 57.6V or 58.4V (lead-acid 48V voltages) instead of 54.6V. This overcharges LiFePO4, triggers BMS over-voltage protection, and can damage cells.

• Float voltage enabled: LiFePO4 does not need float. A float voltage of 53-54V applied continuously after full charge causes slight overcharging and long-term degradation. Disable float or set it equal to absorption voltage.

• Low voltage cutoff set too low: If the inverter cuts off at 40V (the BMS hard cutoff) instead of 44-46V, the battery can be deeply discharged before the inverter shuts off. Set inverter cutoff 4-6V above the BMS hard cutoff.

• Charge current set too high: Exceeding the BMS max charge current or the module rating causes overheating and reduced cycle life. Always verify the total charge current does not exceed any single module's rating (in a parallel system, current divides, but if one module has higher resistance, others may take more).

• BMS communication not configured: Without communication, the inverter cannot receive charge/discharge limits or fault signals from the BMS. This can lead to overcharging if the BMS tries to stop charging but the inverter doesn't receive the signal.

48V Rack-Mounted System Charging Setup

48V rack-mounted LiFePO4 systems are the most common commercial form factor, used in data centers, telecom, and commercial ESS. Charging setup for rack systems has specific considerations beyond general commercial charging.

Rack System Charging Architecture

• Master BMS / BMU: Most rack systems have a master BMS (or Battery Management Unit) that coordinates all modules in the rack. The BMU communicates with the inverter/PCS via CAN or RS485 and reports system-level data.

• Module-level BMS: Each module has its own BMS that monitors cell voltages, temperature, and current, and performs cell balancing. Module BMS units communicate with the master BMU via internal CAN bus.

• Parallel busbars: Modules are connected in parallel via copper busbars in the rack backplane or via external busbars. Each module has a DC contactor or fuse that can disconnect it from the bus for maintenance or fault isolation.

• Rack monitoring: The BMU provides a monitoring interface (LCD display, web interface, or SNMP/Modbus) showing each module's voltage, current, temperature, SOC, and fault status.

48V Rack Charging Setup Steps

1. Verify rack installation: All modules properly seated, busbar connections tight, communication cables connected, rack grounded per code.

2. Power on BMU: Power on the master BMU and verify it detects all modules. Check each module's status LED (green = normal, red = fault, blinking = communicating).

3. Check module voltage matching: Via the BMU monitoring interface, verify all modules are within ±0.5V of each other. If not, charge/discharge individual modules to match before connecting to the inverter.

4. Connect inverter/PCS: Connect the DC bus from the rack to the inverter/PCS. Verify correct polarity. Install a DC disconnect switch and overcurrent protection between the rack and inverter per NEC Article 480.

5. Configure BMS communication: Set the inverter battery type to "LiFePO4" and select the correct CAN protocol (PYLONTECH, DEYE, SOLARAXE, etc.) or configure RS485 Modbus settings. Verify communication is established (inverter shows battery SOC and voltage).

6. Set charge parameters: Bulk/absorption voltage = 54.6V, max charge current = 0.2C–0.5C of total rack capacity, low voltage cutoff = 44–46V, float = disabled. Verify these settings match the BMU's recommended values (some BMUs automatically send charge limits to the inverter via CAN).

7. Test charge at reduced rate: Start charging at 0.1C–0.2C for 15 minutes, monitoring all module voltages and temperatures via the BMU. Verify even current sharing across modules (current spread < 10% between modules).

8. Increase to normal rate: If all modules charge evenly and no faults, increase to the normal charge rate (0.2C–0.5C).

9. Verify CV stage and balancing: When the rack reaches 54.6V, verify the inverter switches to CV mode and current tapers. Monitor cell balancing across all modules during CV stage. A full rack may take 2-4 hours of CV stage to complete balancing.

10. Document settings: Record all inverter/PCS settings, BMU firmware versions, module serial numbers, and initial test results for future reference and maintenance.

For more on 48V rack system specifications, sizing, and procurement, see our 48V rack-mounted LiFePO4 battery guide.

Solar + Storage Charging Strategy

For commercial solar + storage systems, charging is not just "plug in and wait"—it requires a strategy that maximizes solar self-consumption, minimizes grid electricity costs, and ensures battery health. The charging source is typically a combination of solar PV (via MPPT charge controller or hybrid inverter) and grid AC (via inverter charger or PCS).

Charging Source Priority

Hybrid Inverter Charging Modes

• Solar-first mode: Inverter prioritizes solar PV for charging and building load. Battery charges from excess solar only. Grid charging is disabled or only used for backup. Best for systems with high solar self-consumption goals or no TOU rates.

• TOU / time-of-use mode: Inverter charges battery during off-peak grid hours (cheap electricity) and discharges during peak hours (expensive electricity), in addition to using excess solar. Best for commercial buildings with TOU electricity rates—can significantly reduce demand charges and energy costs.

• Backup-only mode: Battery stays at 100% charge (topped up periodically from solar or grid) and only discharges during grid outages. Best for critical backup applications (data centers, healthcare, emergency systems). Note: keeping LiFePO4 at 100% continuously is not ideal for long-term life; for backup-only systems, set the inverter to maintain at 90-95% SOC rather than 100%, and perform a full charge cycle monthly.

• Custom schedule mode: Advanced inverters allow custom charging/discharging schedules based on time of day, day of week, electricity rate, or weather forecast. Best for optimizing for complex rate structures or demand charge management.

Solar Charging Best Practices

• MPPT charge controller sizing: The MPPT controller (or hybrid inverter's solar input) must be sized for the solar array's maximum current. A common rule: controller current rating ≥ solar array short-circuit current (Isc) × 1.25.

• Solar array voltage matching: The solar array's open-circuit voltage (Voc) must be within the MPPT controller's input voltage range, even at low temperatures (Voc increases as temperature decreases). Verify the array Voc at the lowest expected temperature is below the controller's max input voltage.

• Avoid partial shading: Partial shading of the solar array reduces MPPT efficiency and can cause uneven string currents. Use module-level power electronics (microinverters or DC optimizers) if shading is unavoidable.

• Charge current limiting: On very sunny days, the solar array may produce more current than the battery's safe charge rate. The MPPT controller or hybrid inverter must limit the charge current to the BMS's max charge current (0.2C–0.5C standard). Verify this limit is configured in the inverter settings.

• Weather forecasting: Advanced systems use weather forecasts to adjust charging strategy—if a cloudy day is forecast, the system may charge more from off-peak grid the night before to ensure enough backup capacity.

TOU Peak Shaving & Charge Scheduling

For commercial buildings with time-of-use (TOU) electricity rates, a LiFePO4 battery system can significantly reduce electricity costs by charging during cheap off-peak hours and discharging during expensive peak hours. This is called "TOU arbitrage" or "peak shaving."

Typical Commercial TOU Rate Structure

Note: Exact TOU rate periods and prices vary by utility and region. Always check your local utility's rate schedule before configuring a TOU charging strategy. Some utilities also have demand charges (based on peak power draw, not just energy consumed), which adds another layer of optimization.

TOU Charging Configuration Steps

1. Obtain your utility's TOU rate schedule: Identify off-peak, mid-peak, and on-peak hours, and the corresponding electricity rates ($/kWh). Also check for demand charges ($/kW).

2. Calculate the economic threshold: Determine the minimum price difference between off-peak and on-peak rates that makes TOU arbitrage worthwhile (accounting for battery round-trip efficiency ~90%, cycle life degradation cost, and system maintenance). A general rule: off-peak rate × 1.15 (efficiency loss) < on-peak rate × 0.8 (degradation cost) = profitable.

3. Configure inverter TOU schedule: In the hybrid inverter or PCS settings, set the charging schedule to charge from grid during off-peak hours (e.g., 11 PM – 5 AM), and discharge during on-peak hours (e.g., 12 PM – 6 PM). Set the charge current to 0.2C–0.5C and the discharge current to match the building's peak load.

4. Set SOC limits: Set the minimum SOC for TOU discharge (e.g., 20-30%) to avoid deep discharge, and the maximum SOC for charging (e.g., 90-95% for daily cycling, 100% if backup is also needed). Keeping some reserve capacity for backup is recommended.

5. Configure demand charge management (if applicable): If your utility has demand charges, configure the inverter to discharge the battery when building load exceeds a set threshold (e.g., 50 kW), reducing the peak demand and lowering demand charges. This is called "peak shaving" and can be more valuable than TOU arbitrage for commercial buildings.

6. Monitor and adjust: After 1-2 billing cycles, review electricity bills to verify cost savings. Adjust the schedule if needed (e.g., if on-peak hours shift seasonally, or if solar production changes with seasons).

Fast Charging Impact on Commercial Battery Life

Commercial applications sometimes require fast charging (1C or higher)—for example, electric vehicle charging stations, material handling equipment (forklifts, AGVs), or backup systems that need quick recharge after an outage. While LiFePO4 can handle fast charging better than other lithium chemistries, it still has tradeoffs.

Charge Rate vs. Cycle Life (Approximate)

Note: These are approximate values. Actual cycle life depends on cell quality, BMS design, thermal management, depth of discharge, and operating temperature. Always refer to the manufacturer's specifications for the specific battery model.

Best Practices for Fast Charging

• Verify manufacturer rating: Before fast charging, verify the battery's maximum charge current rating in the datasheet. Never exceed the BMS max charge current—this can trigger BMS over-current protection or damage the BMS.

• Active thermal management: Fast charging generates more heat (I²R losses). Ensure the battery has adequate cooling—forced air, liquid cooling, or at least good ventilation. Monitor battery temperature during fast charging; if it exceeds 40°C, reduce the charge current.

• Limit fast charging frequency: If possible, use 0.2C–0.5C for daily charging and reserve 1C+ fast charging for when it's truly needed (e.g., quick turnaround between shifts). Frequent fast charging accelerates degradation.

• Avoid fast charging cold batteries: Fast charging below 10°C increases lithium plating risk. Warm the battery to 15°C+ before fast charging.

• Use high-current rated connectors and cables: Fast charging requires heavy-gauge cables and high-current-rated connectors (Anderson SB175/SB350, busbars, etc.). Undersized cables cause voltage drop, overheating, and reduced effective charge voltage.

• Monitor cell voltage spread: During fast charging, cell voltage spread can increase. If one cell reaches 3.65V before others, the BMS stops charging early, leaving other cells undercharged. More frequent balance cycles may be needed with fast charging.

Commercial Charging Safety Codes & Standards

Commercial LiFePO4 battery installations must comply with local, national, and industry safety codes. Non-compliance can result in failed inspections, denied insurance, fines, or safety hazards. The following are the key codes and standards relevant to commercial battery charging:

Key Safety Requirements for Commercial Charging Installations

• DC disconnect: A readily accessible DC disconnect switch must be installed between the battery and inverter/PCS, rated for the maximum DC voltage and current. Required by NEC Article 480.

• Overcurrent protection: Fuses or circuit breakers on the DC charging circuit, rated for the battery's maximum short-circuit current and DC voltage. Use DC-rated fuses (not AC fuses)—DC arcs are harder to extinguish.

• Battery room ventilation: While LiFePO4 does not emit gas during normal operation (unlike lead-acid), NFPA 855 may require ventilation for thermal runaway scenarios. Follow the battery manufacturer's ventilation recommendations and local AHJ requirements.

• Thermal monitoring: Battery temperature sensors (per module and per cell group) connected to the BMS, with high-temperature alarms and automatic charge/discharge shutdown. For large systems, independent thermal monitoring (smoke detectors, heat detectors) may be required by NFPA 855.

• Fire suppression: For installations above NFPA 855 thresholds (e.g., >20 kWh in occupied spaces, or >600 kWh in dedicated rooms), fire suppression systems (clean agent, water mist, or sprinkler) may be required. Verify with your local AHJ.

• Signage: Battery rooms must have warning signs: "DANGER—BATTERY SYSTEM—HIGH VOLTAGE," "NO SMOKING," "B2: LOW HAZARD (Li-ion)" (NFPA 704), and emergency shutdown instructions.

• Personal protective equipment (PPE): For maintenance personnel working on charging circuits: insulated gloves (rated for DC voltage), face shield, insulated tools, and arc flash PPE (if arc flash hazard analysis requires it).

For more on LiFePO4 safety, thermal runaway, and certifications, see our LiFePO4 battery safety guide. For supplier evaluation and certification verification, see our reliable BESS supplier guide.

Commercial Charging Maintenance Plan

Proactive maintenance of commercial battery charging systems prevents costly downtime, extends battery life, and ensures safety. Establish a regular maintenance schedule based on the system size and application.

Record Keeping

Maintain a detailed maintenance log for each commercial battery system, including:

• Installation date, module serial numbers, firmware versions, initial capacity test results

• Daily/weekly/monthly inspection records (temperature readings, voltage, SOC, any anomalies)

• Fault and alarm history (date, time, fault code, description, resolution)

• Charge/discharge cycle count (from BMS data)

• Quarterly/annual capacity test results (track capacity degradation over time)

• Maintenance performed (connections torqued, firmware updated, components replaced)

• Any repairs or warranty claims

Good record keeping helps identify trends (e.g., a module whose capacity is declining faster than others), supports warranty claims, and ensures compliance with maintenance requirements in insurance policies and service contracts.

Sizing Your Charging Infrastructure

Properly sizing the charging infrastructure (charger/inverter/PCS power rating, cables, fuses, disconnects) ensures safe, efficient, and cost-effective charging. Undersizing causes slow charging and voltage drops; oversizing wastes capital and may exceed the battery's safe charge current.

Charger / PCS Power Sizing Formula

Sizing Examples

Cable Sizing for DC Charging Circuits

DC cables must be sized for the maximum charge/discharge current, with acceptable voltage drop (typically < 2% of system voltage over the cable run). Use the following as a starting point—always verify with the cable manufacturer's ampacity table and local electrical code (NEC Article 310 for US installations):

• 50A (48V 100Ah at 0.5C): 6 AWG copper (minimum), 4 AWG recommended for runs > 3m

• 100A (48V 200Ah at 0.5C): 2 AWG copper, 1/0 AWG recommended for runs > 3m

• 200A (48V 400Ah at 0.5C): 2/0 AWG copper, 3/0 AWG recommended

• 400A (48V 800Ah at 0.5C): 4/0 AWG copper, or copper busbars (recommended for > 300A)

• For high-current systems (> 400A): Use copper busbars rather than cables. Busbars provide lower resistance, better heat dissipation, and easier connection of multiple modules.

Related Resources

• How to Charge LiFePO4 Batteries: Complete Guide — basic charging parameters (CC/CV, voltage, current, temperature), charger selection, charge time calculator, and lifespan tips (start here for fundamentals)

• LiFePO4 Battery Not Charging? Troubleshooting & Fixes — 7 common causes, 60-second diagnosis flowchart, sleeping battery wake-up procedure, and when to replace the battery

• 48V Rack-Mounted LiFePO4 Battery Guide — rack system specifications, sizing, procurement checklist, and inverter integration

• How to Reset BMS on LiFePO4 Battery — BMS protection modes, reset procedures, fault codes, and cell balancing

• LiFePO4 Battery Safety Guide — thermal runaway, fire risk, certifications, and safe charging practices

• Reliable BESS Supplier vs Risky Supplier — 17-point audit checklist for evaluating commercial battery suppliers, including certification verification

• LiFePO4 Battery Products — 12V, 24V, and 48V rack-mounted batteries with quality BMS, CAN/RS485 communication, and full certifications

Frequently Asked Questions

How do I set up my hybrid inverter to charge a 48V LiFePO4 battery?

To set up a hybrid inverter for 48V LiFePO4 charging: (1) Set battery type to "LiFePO4" or "LFP" (or "User" with manual settings). (2) Set absorption/bulk charge voltage to 54.6V (3.65V/cell × 16). (3) Disable float charging (set float voltage to 0V or equal to absorption voltage—LiFePO4 does not need float). (4) Set max charge current to 0.2C-0.5C of total battery capacity (e.g., 160A-400A for an 800Ah system). (5) Set low voltage cutoff (discharge) to 44-46V (above the BMS hard cutoff of 40V). (6) Configure BMS communication: select the correct CAN protocol (PYLONTECH, DEYE, SOLARAXE, etc.) or RS485 Modbus settings, and verify the inverter displays battery SOC and voltage. (7) Test charge at a reduced rate (0.1C) first, monitoring battery voltage and temperature, then increase to normal rate. For 24V systems, use 29.2V charge voltage and 22-23V low cutoff. Always refer to the inverter and battery manufacturer manuals for model-specific settings.

Can I charge multiple LiFePO4 batteries in parallel?

Yes, LiFePO4 batteries can be charged in parallel, but follow these rules: (1) Use identical modules (same manufacturer, model, capacity, age, firmware). (2) Pre-charge all modules to within ±0.5V of each other before connecting in parallel—large voltage differences cause high inrush current. (3) Use equal-length cables or copper busbars for all module connections to ensure equal resistance and current sharing. (4) Install a per-module fuse on the positive output of each module, rated at the module's max continuous current. (5) Use master/slave BMS communication (CAN/RS485 daisy chain) so the master BMS can coordinate charging and report system-level data to the inverter. (6) Charge at a reduced rate (0.1C-0.2C) for the first 15 minutes after initial connection, monitoring module voltages to verify even charging. (7) During CV stage, allow extra time (2-4 hours) for all modules to complete cell balancing. If one module consistently charges faster than others, check for age mismatch, unequal cable resistance, or a failing cell in that module.

What is the best charging strategy for commercial solar + storage systems?

The best commercial solar + storage charging strategy depends on your electricity rate structure: (1) If you have TOU (time-of-use) rates: charge from excess solar during the day, plus charge from grid during cheap off-peak hours (night), and discharge during expensive on-peak hours (afternoon/evening) to reduce energy costs. Also configure demand charge management (discharge when building load exceeds a threshold to reduce peak demand charges). (2) If you have flat rates (no TOU): prioritize solar self-consumption—charge from excess solar that would otherwise be exported, discharge during evening hours when solar is not producing. Grid charging is usually not economical with flat rates. (3) If backup is the primary goal: maintain battery at 90-95% SOC (topped up from solar), discharge only during grid outages. Avoid keeping at 100% continuously for battery health. (4) For all strategies: limit daily depth of discharge to 70-80% (don't go below 20-30% SOC), charge at 0.2C-0.5C, and perform a full charge + balance cycle monthly. Use your inverter's scheduling features or energy management system (EMS) to automate the strategy, and review electricity bills after 1-2 cycles to verify savings and adjust as needed.

How fast can I charge a commercial LiFePO4 battery system?

The maximum safe charge rate depends on the battery manufacturer's specification. Most commercial LiFePO4 batteries support 0.5C standard charging (e.g., 400A for an 800Ah 48V system), with 1C fast charging available on many models (e.g., 800A for 800Ah). However, faster charging reduces cycle life: at 0.2C you can expect 6,000+ cycles, at 0.5C 4,000-5,000 cycles, at 1C 3,000-4,000 cycles, and at 1.5C+ 2,000-3,000 cycles or less. For commercial stationary applications (solar+storage, TOU arbitrage, backup), 0.2C-0.5C is recommended to maximize life and ROI. Fast charging (1C+) should be reserved for applications that require quick turnaround (EV charging, material handling, emergency backup recharge) and only with manufacturer approval, active thermal monitoring, and high-current-rated cables/busbars. Never exceed the BMS max charge current rating—this can trigger BMS protection or damage the BMS. Always verify the specific battery model's charge current rating in the manufacturer's datasheet.

What safety codes apply to commercial LiFePO4 battery charging installations?

Key safety codes and standards for commercial LiFePO4 installations include: (1) NFPA 855 — Standard for the Installation of Stationary Energy Storage Systems (battery room layout, spacing, fire suppression, ventilation, energy thresholds). (2) NEC Article 480 — Storage Batteries (wiring, overcurrent protection, disconnects, ventilation, signage). (3) UL 9540 — Energy Storage Systems and Equipment certification (complete ESS). (4) UL 9540A — Thermal Runaway Fire Propagation testing (required for installations above certain energy thresholds). (5) UL 1973 — Batteries for Stationary Applications (battery module/pack certification). (6) IEC 62619 — International industrial battery safety standard (equivalent to UL 1973 for international markets). (7) IEEE 1547 — Grid interconnection standard for distributed energy resources. Key requirements include: DC disconnect switch, DC-rated overcurrent protection, battery room ventilation, thermal monitoring with automatic shutdown, fire suppression (for larger systems), warning signage, and PPE for maintenance. Always check with your local Authority Having Jurisdiction (AHJ) for specific requirements in your area, and engage a licensed electrician for commercial installations.

How do I verify BMS communication with my inverter?

To verify BMS-inverter communication: (1) Connect the BMS communication cable (CAN bus or RS485) between the battery/BMU and the inverter, following the manufacturer's wiring diagram (pinout matters—CAN_H to CAN_H, CAN_L to CAN_L, GND to GND; for RS485, A to A, B to B). (2) Configure the inverter settings: select the correct battery type (LiFePO4), communication protocol (e.g., PYLONTECH CAN, DEYE CAN, Modbus RTU), and for RS485, set baud rate, parity, stop bits, and slave address to match the BMS. (3) Power on the battery/BMU first, then the inverter. (4) Check the inverter display or monitoring app: it should show battery SOC (state of charge), battery voltage, charge/discharge current, and temperature. If these values are displayed and reasonable (SOC between 0-100%, voltage matches multimeter reading within 0.5V), communication is working. (5) If communication fails: check cable wiring and pinout, verify protocol setting matches the BMS, check baud rate and address (for RS485), verify terminating resistors (120Ω for CAN bus at both ends of the daisy chain), check that the BMU is powered on and detecting all modules, and verify inverter firmware is up to date (some inverters need a firmware update to support certain BMS protocols). If you still can't establish communication, contact the battery or inverter manufacturer's technical support for a compatibility list and setup guide.

What maintenance does a commercial LiFePO4 charging system need?

A commercial LiFePO4 charging system needs regular maintenance at multiple intervals: (1) Daily (automated): BMS monitoring of SOC, voltage, current, temperature, and fault status with automated alerts for anomalies. (2) Weekly: Visual inspection of battery room temperature, ventilation, no unusual odors, no swollen/damaged modules, no loose/corroded connections, no warning lights. (3) Monthly: Detailed inspection—torque all DC connections to spec, thermal imaging for hot spots, verify per-module voltage matching (spread < 0.2V), check cell voltage spread (< 50mV at full charge), clean air filters/vents, verify firmware versions, review fault log. (4) Quarterly: Full charge to 100% + 2-4 hour balance cycle, capacity test (discharge to 20% and measure kWh), inspect/test DC disconnect and fuses, verify grounding. (5) Annually: Comprehensive service—full capacity test (compare to baseline), internal resistance test per module, thermal imaging of all connections and busbars, insulation resistance test, verify fire suppression operation, verify NFPA 855/NEC compliance, update firmware, replace degraded components. Maintain a detailed maintenance log including installation data, inspection records, fault history, cycle counts, capacity test results, and maintenance performed. Good record keeping supports warranty claims, identifies degradation trends, and ensures insurance/contract compliance. For large systems (>100 kWh), consider a manufacturer-authorized annual service contract.

How do I size the charger / PCS for my commercial battery system?

To size a charger or PCS for a commercial LiFePO4 system: (1) Determine your desired charge rate (C-rate): 0.2C for maximum life (stationary ESS, TOU), 0.5C for standard (balance of speed and life), 1C for fast charging (EV, material handling). (2) Calculate required charge current: Charge Current (A) = Battery Capacity (Ah) × Charge Rate (C). For example, a 48V 800Ah system at 0.5C = 400A charge current. (3) Calculate required charger power: Charger Power (kW) = Charge Current (A) × Charge Voltage (V) ÷ 1000. For the 800Ah example: 400A × 54.6V ÷ 1000 = 21.8 kW. (4) Round up to the next standard charger/PCS size (e.g., 22 kW, 25 kW, 30 kW), leaving 10-20% headroom. (5) Verify the charger/PCS max current does not exceed the BMS max charge current rating. (6) Size DC cables for the max current with < 2% voltage drop: 50A = 6 AWG, 100A = 2 AWG, 200A = 2/0 AWG, 400A = 4/0 AWG or copper busbars. (7) For solar+storage systems, also size the MPPT solar input (or hybrid inverter solar rating) for your solar array's max current. (8) For PCS systems (large ESS), consider both charge and discharge power requirements—you may need different power levels for charging vs discharging, and the PCS must be bidirectional. Always consult the battery and PCS manufacturer for system-specific sizing recommendations, and verify compliance with local electrical codes.

Summary

Commercial LiFePO4 battery charging is fundamentally different from charging a single residential battery. The key differences and best practices are:

• Multi-module parallel systems require matched modules (same model/age/firmware), pre-charge voltage matching (±0.5V), equal-length busbars, per-module fusing, and master/slave BMS communication to ensure even current sharing and prevent module damage.

• Inverter/PCS setup is critical: set battery type to LiFePO4, charge voltage to 54.6V (48V) / 29.2V (24V), disable float charging, set max charge current to 0.2C–0.5C, set low voltage cutoff to 44–46V (48V), and configure CAN/RS485 BMS communication. Incorrect settings are the #1 cause of premature commercial battery failure.

• 48V rack systems require BMU coordination, module-level monitoring, proper busbar sizing, and sequential commissioning (reduced rate first, then normal rate).

• Solar + storage charging strategy should prioritize excess solar first, then off-peak grid (for TOU arbitrage), and avoid peak grid charging. Configure the inverter's TOU schedule and demand charge management to maximize cost savings.

• TOU peak shaving can significantly reduce commercial electricity costs, but requires careful configuration of charge/discharge schedules, SOC limits, and demand thresholds. Daily TOU cycling at 70-80% DoD yields ~11 years of life at 4,000 cycles.

• Fast charging (1C+) reduces cycle life (3,000-4,000 cycles vs 6,000+ at 0.2C) and should be reserved for applications that require it, with active thermal management and manufacturer approval.

• Safety compliance with NFPA 855, NEC Article 480, UL 9540/9540A/1973, IEC 62619, and IEEE 1547 is mandatory for commercial installations. Key requirements: DC disconnect, DC-rated fuses, ventilation, thermal monitoring, fire suppression, signage, and PPE.

• Maintenance plan (daily automated monitoring, weekly visual, monthly detailed, quarterly full balance, annual comprehensive service) extends battery life, prevents downtime, and supports warranty claims.

• Charging infrastructure sizing follows the formula: Charge Current = Capacity × C-rate, Charger Power = Current × Voltage ÷ 1000. Size cables for < 2% voltage drop and use busbars for > 300A systems.

For basic charging parameters and charger selection, see our complete LiFePO4 charging guide. If your system is not charging, see our troubleshooting guide. Enerbe provides commercial LiFePO4 battery systems with quality BMS, CAN/RS485 communication, full certifications (UL 1973, IEC 62619, UN38.3, CE, RoHS), and engineering support for inverter/PCS integration. For wholesale pricing, custom configurations, or technical support, contact our engineering team.
