Introduction: The Material Behind the LFP Battery

Most LiFePO4 content describes what the battery does—its voltage, capacity, cycle count and applications. This page answers a different question: why the material behaves the way it does. The safety, longevity, flat voltage curve and lower energy density of LFP are not accidents; they follow directly from the way its atoms are arranged and the way lithium moves through them during use.

Understanding this material science helps B2B buyers interpret datasheets, ask better questions of suppliers, and understand why certain manufacturing details—carbon coating in particular—matter. It is a companion to our product-level guides rather than a replacement for them.

What Does LFP Stand For? Names and Formula

The chemical formula is LiFePO₄, read as lithium iron phosphate. The abbreviation LFP is built from the formula: Lithium, Fe (iron), and Phosphate. The letters are worth unpacking because they explain some of the confusing naming:

• Li = lithium, the ion that moves between the electrodes during charge and discharge.

• Fe = iron. Iron's chemical symbol Fe comes from its Latin name ferrum, which is also why you may see the material called lithium ferrophosphate. The iron atom is the site of the redox reaction (Fe²⁺ ↔ Fe³⁺).

• PO₄ = the phosphate group, a phosphorus atom bonded to four oxygen atoms in a tetrahedron, which forms the structural backbone of the crystal.

You will encounter the same material under several equivalent names—lithium iron phosphate, lithium ferrophosphate, LiFePO4 and the shorthand LFP. They all refer to the same olivine compound. The battery as a whole is an LFP or LiFePO4 battery; the chemistry family it belongs to is lithium-ion.

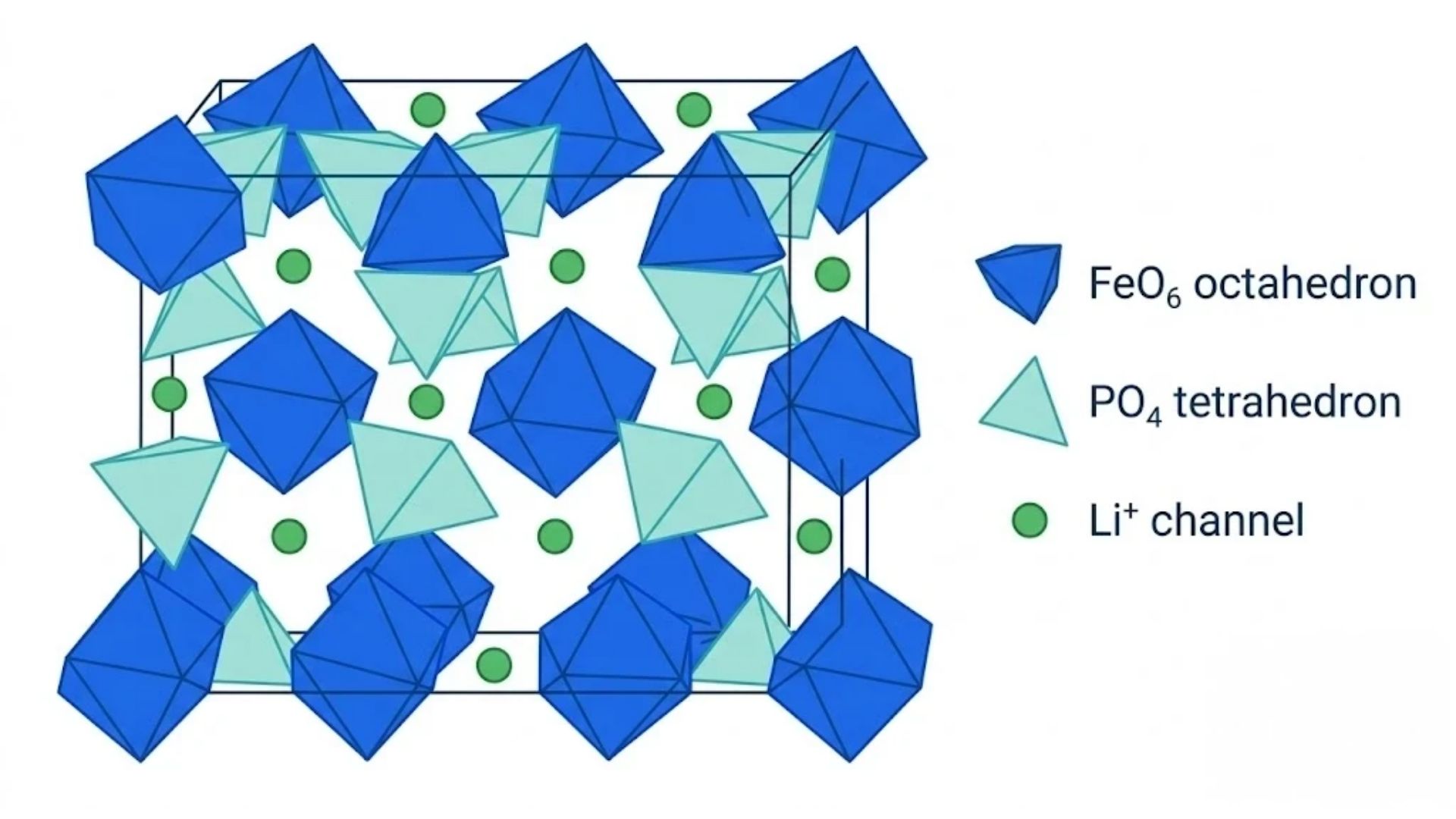

The Olivine Crystal Structure of LiFePO4

LiFePO4 crystallizes in an olivine-type structure—the same topological arrangement as the mineral olivine—with an orthorhombic unit cell. The lattice is built from three pieces:

• FeO₆ octahedra: iron atoms surrounded by six oxygen atoms, linked into sheets; the iron here is the redox-active centre.

• PO₄ tetrahedra: phosphorus surrounded by four oxygens, bridging the iron octahedra. The P–O bond is short and very strong.

• Li sites in one-dimensional channels: lithium ions sit in tunnels running through the framework (along the crystal's b-axis), which give Li⁺ a path to enter and leave.

This arrangement is fundamentally different from the layered oxides used in NMC and NCA, where lithium and transition metals occupy planes in a layered lattice. In LFP the lithium travels inside a rigid, three-dimensionally cross-linked framework—a difference that drives most of the chemistry's characteristics.

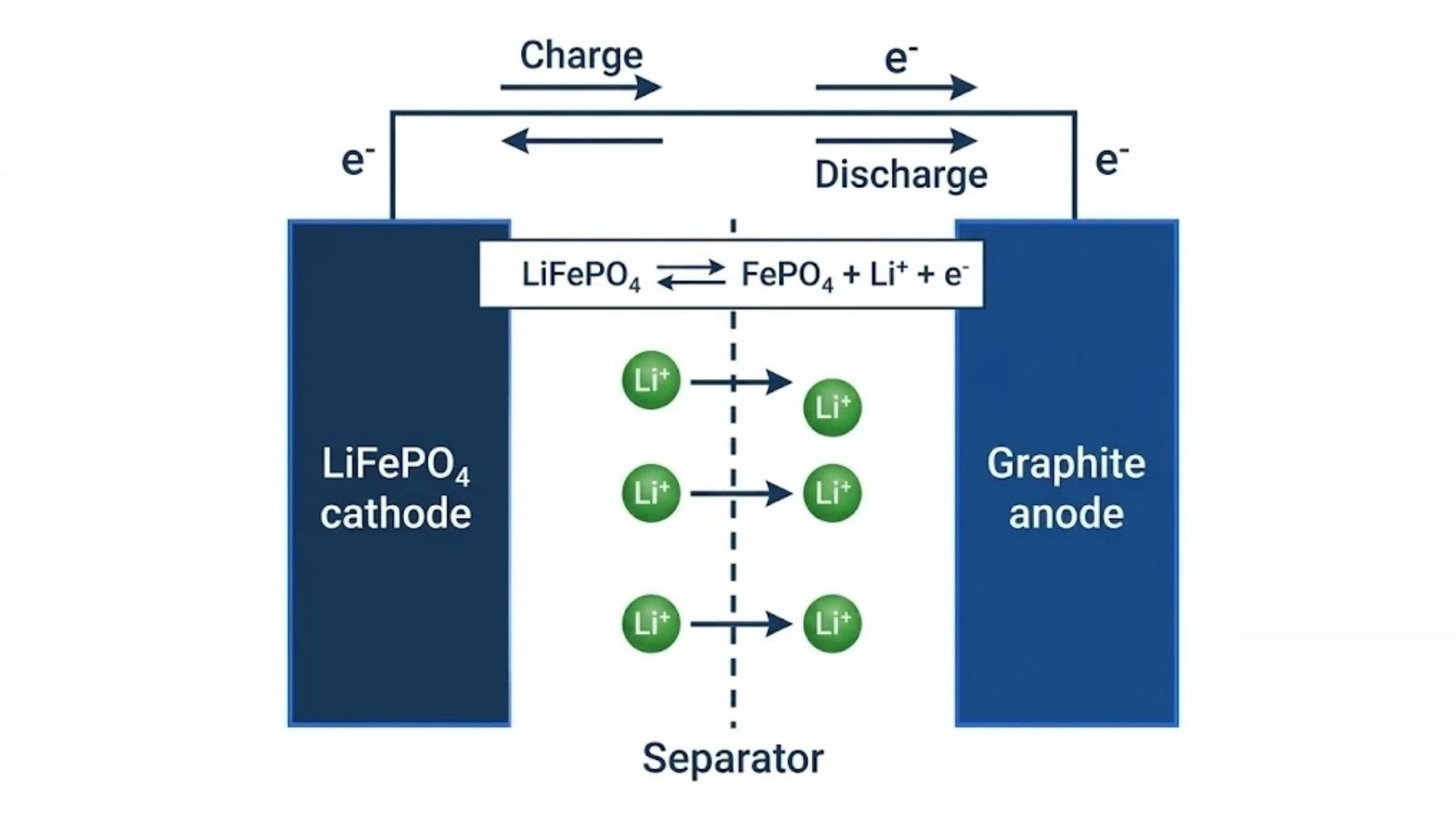

Charging & Discharging: The Li-Ion Intercalation Reaction

A LiFePO4 battery does not create or destroy lithium. During cycling, lithium ions are inserted into and removed from the crystal—a reversible process called intercalation (and de-intercalation)—while electrons travel through the external circuit.

The cathode half-reaction is:

• During charge, an external power source drives Li⁺ out of the LiFePO4 cathode, leaving FePO4; the iron oxidizes from Fe²⁺ to Fe³⁺. The lithium ions pass through the electrolyte and separator and insert into the graphite anode (forming LiC₆), while electrons travel the external wire.

• During discharge the process reverses: Li⁺ leaves the graphite, travels back through the electrolyte and reinserts into the FePO4 framework to reform LiFePO4; iron reduces from Fe³⁺ to Fe²⁺, and electrons flow through the load, delivering power.

The overall cell reaction couples the cathode above with a graphite anode (6C + Li⁺ + e⁻ ↔ LiC₆). Because the ions are guests moving inside an essentially unchanged host, the reaction can repeat thousands of times without the host falling apart.

Why the Structure Makes LFP Long-Lasting

In many battery materials, repeatedly inserting and removing lithium swells and shrinks the lattice, accumulating mechanical stress that eventually cracks particles and fades capacity. LFP minimizes this in two ways:

• The framework of FeO₆ octahedra and strong PO₄ tetrahedra remains in place during cycling; lithium only moves through the channels.

• The volume difference between the lithiated (LiFePO4) and delithiated (FePO4) phases is small—around 6–7%—so the breathing stress on each particle is low.

The result is a chemistry that routinely reaches several thousand full cycles before reaching end-of-life, far beyond lead-acid and ahead of most layered oxides under comparable conditions. The full numbers, the role of depth of discharge and the meaning of the 80% end-of-life point are covered in our LiFePO4 cycle-life guide and the lifespan overview. The microscopic reason for those numbers is the stable, low-strain olivine host described here.

Why the P–O Bond Makes LFP Thermally Safe

Battery thermal events are commonly driven by oxygen released from the cathode when it overheats; that oxygen can feed exothermic reactions with the electrolyte. In LFP the phosphate group holds its oxygen tightly:

• The strong, covalent P–O bonds in the PO₄ tetrahedra are difficult to break, so the cathode resists oxygen release at elevated temperature.

• The olivine framework is already a fully cross-linked, stable lattice rather than a layered one that can more readily decompose.

Consequently LiFePO4 has a high onset temperature for thermal decomposition and tends to fail more slowly, giving the battery management system time to protect the pack. This is the material basis for LFP's reputation as the safest common lithium-ion chemistry; the measured temperatures, abuse-test behaviour and practical fire guidance are in the are LiFePO4 batteries safe guide and the LiFePO4 safety guide. Note that chemistry alone is not enough—a reliable BMS and proper installation remain essential.

Why LFP Has Lower Energy Density

The same structure that buys safety and life costs some energy density. Two material facts set LFP below NMC and NCA on a Wh/kg basis:

• Lower cell voltage: the Fe³⁺/Fe²⁺ redox couple gives a nominal 3.2V (and a very flat plateau), versus roughly 3.6–3.7V for NMC. Since energy is voltage times capacity, the lower operating voltage directly lowers specific energy.

• Heavier framework and lower capacity: the phosphate-olivine host is comparatively heavy per lithium stored, and its practical specific capacity is lower than the best layered oxides.

In most stationary and many mobile applications this gap is acceptable because LFP's longer life and safety improve total cost of ownership; where every kilogram and litre is constrained—long-range vehicles, compact consumer devices—higher-density chemistries remain common. The quantified side-by-side figures and ten-year cost view are in the LFP vs NMC vs lead-acid comparison.

How Manufacturing Fixes LFP's Low Conductivity

LiFePO4's best-known material weakness is its very low intrinsic electronic conductivity (often quoted around 10⁻⁹–10⁻¹⁰ S/cm), and lithium movement is confined to one-dimensional channels. Without intervention the material could not deliver high current. Producers address this with well-established techniques:

A uniform carbon coating is one of the most informative details to ask a supplier about: thin, even carbon coverage and consistent particle quality distinguish a well-made LFP electrode from a poorly performing one, even when the rated capacities look identical.

What This Means for B2B Buyers

• The headline LFP traits—safety, long life, flat 3.2V curve, lower energy density—are direct consequences of the olivine lattice, not marketing claims.

• Ask for evidence of the conductivity solutions: carbon coating process, particle size distribution and, where relevant, doping.

• Match the cell to the current demand: well-coated, appropriately sized material performs well at high rate; poorly made LFP will show voltage sag and early fade.

• Remember the chemistry still depends on a quality BMS and correct charging; see the charging guide and balancing guide.

Where to Go Next: The Related LiFePO4 Pages

To avoid covering the same ground twice, the three LiFePO4 knowledge pages are deliberately split:

Frequently Asked Questions

What does LFP stand for?

LFP stands for lithium (Li), iron (Fe, from Latin ferrum) and phosphate (PO4)—lithium iron phosphate, formula LiFePO4. The same material is also called lithium ferrophosphate. It is an olivine-structured lithium-ion chemistry, and the battery built from it is an LFP or LiFePO4 battery.

What is the olivine crystal structure in LiFePO4?

It is an orthorhombic lattice made of FeO6 octahedra linked with PO4 tetrahedra, with lithium ions occupying one-dimensional channels. Lithium moves in and out through these channels during cycling while the strong phosphate framework stays in place. This differs from the layered structure of NMC/NCA and is the source of LFP's stability.

How do charging and discharging work in LiFePO4?

By reversible intercalation. On charge, Li+ leaves the LiFePO4 cathode (which becomes FePO4, with Fe2+ oxidizing to Fe3+), travels through the electrolyte and enters the graphite anode; electrons take the external wire. On discharge the ions and electrons reverse and Li+ reinserts into FePO4 to reform LiFePO4, powering the load.

What is the cathode half-reaction?

LiFePO4 ↔ FePO4 + Li+ + e−. Charging proceeds left to right (delithiation), discharging right to left (lithiation). Coupled with a graphite anode, the overall reaction is LiFePO4 + 6C ↔ FePO4 + LiC6.

Why do LiFePO4 batteries last so many cycles?

Because the olivine host remains intact during lithium insertion/removal and the volume change between LiFePO4 and FePO4 is only around 6–7%, giving very low mechanical stress per cycle. Instead of accumulating lattice damage, the particles retain their structure, allowing several thousand cycles before end-of-life.

Why is LiFePO4 thermally stable and safe?

The strong P–O bonds in the phosphate tetrahedra resist oxygen release when the cathode heats, and the cross-linked olivine lattice is harder to decompose than a layered oxide. This raises the onset temperature of thermal breakdown and slows failure, giving the BMS time to react. A good BMS is still required.

Why does LFP have lower energy density than NMC?

Mainly its lower nominal voltage (a flat 3.2V plateau versus about 3.6–3.7V for NMC) and a heavier phosphate host with lower practical specific capacity. Lower voltage times lower capacity means fewer watt-hours per kilogram, though the longer life and safety often make LFP cheaper over the full lifetime.

What is carbon coating and why is it used?

Carbon coating is a thin conductive carbon layer applied to each LiFePO4 particle to compensate for the material's very low intrinsic electronic conductivity (around 10−9–10−10 S/cm). Together with nanosizing, doping and conductive additives in the electrode, it lets the battery deliver high current efficiently.

Why is the LiFePO4 voltage a flat 3.2V plateau?

Because cycling is a two-phase reaction between LiFePO4 and FePO4. While both phases coexist, the Fe3+/Fe2+ redox potential—about 3.2V—stays essentially constant, producing the characteristic flat discharge curve rather than a sloping one.

How is this page different from the complete LiFePO4 guide?

This page explains the material science—naming, crystal structure, intercalation reaction and how structure determines performance. The complete guide covers the product end to end—specifications, advantages, applications and buying advice—and the comparison page covers LFP vs NMC vs lead-acid and TCO. They are designed to complement, not duplicate, each other.

Related Resources

• What Is LiFePO4 Battery: Complete Guide — specifications, advantages, applications, buying advice

• LFP vs NMC vs Lead-Acid Comparison — head-to-head chemistry data and TCO

• Are LiFePO4 Batteries Safe? — measured thermal behaviour

• LiFePO4 Safety Guide — practical safety and abuse guidance

• LiFePO4 Cycle Life Explained — DoD, SOH and cycle count

• How to Charge LiFePO4 Batteries — charge voltage and current

• How to Balance LiFePO4 Batteries — BMS cell balancing

• GB 38031-2025 Safety Standard — compliance requirements

Summary

LFP's characteristics follow directly from its material.

• Name: LiFePO4 = lithium + iron (Fe/ferrum) + phosphate; LFP is the standard shorthand

• Structure: an olivine lattice of FeO6 octahedra and strong PO4 tetrahedra with one-dimensional lithium channels

• Reaction: reversible intercalation, LiFePO4 ↔ FePO4 + Li+ + e−

• Consequences: the stable P–O framework gives long life and thermal safety; the 3.2V plateau and heavy host give lower energy density

• Manufacturing fix: carbon coating, nanosizing, doping and conductive additives overcome the material's low intrinsic conductivity

Enerbe manufactures carbon-coated LiFePO4 cells and batteries built on stable olivine material, backed by datasheets, certifications and application-engineering support. For specifications or material and sourcing questions, contact our team or browse the product range.
